6小时建造，48小时展示，一次轻型装配式建造实验 / 袁野建筑工作室

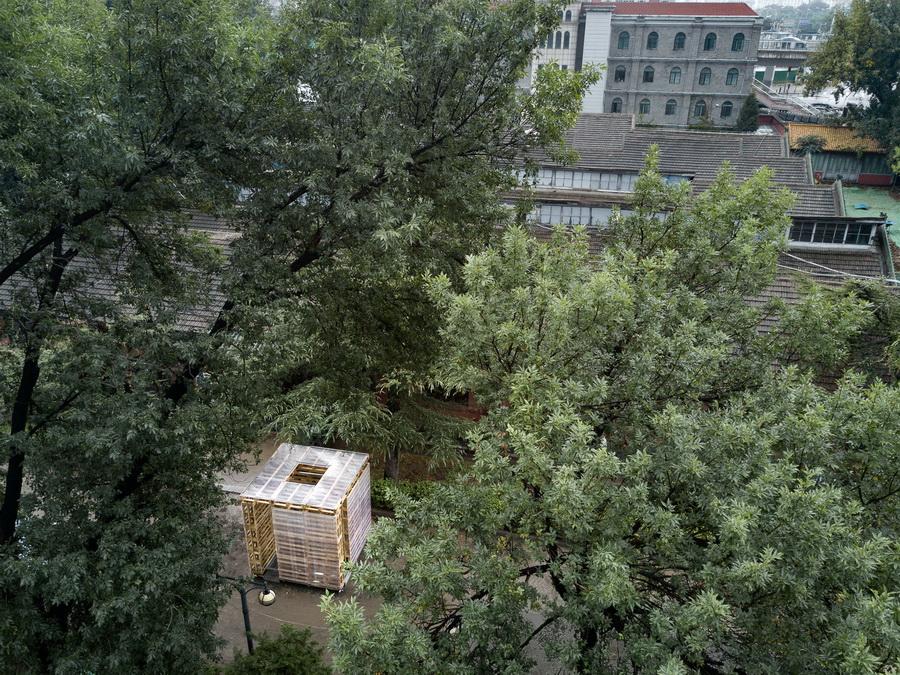

△ 建筑与环境 building and surrounding environment

用最廉价的材料，最简单的方式，以最快的速度建造，最快的速度拆除！

The cheapest materials, the simplest way, the fastest speed to build and to dismantle.

（注：作品页面首次增加英文说明，由于系统暂无法识别单词连接，英文分行处被断开的单词，先请大家自行连接判断，后续我们会逐步优化~给您造成不便，请见谅！）

这是一个具有基本生活尺度的空间原型——3m×3m×3m的立方体空间装置，建造时间6小时，存在时间48小时，拆除时间3小时。

This is a space prototype with basic living scale – 3 m×3 m×3 m cube space device. It took six hours to build, 48 hours to exist, and three hours to dismantle.

△ 项目视频  project video

立方体“漂浮”在地面之上300mm高处，400mm厚双层木垫板墙体呈风车状布置，在四个角部留出600mm宽的开口，人可以从任何方向进入。1m高，600mm宽的折板钢桌立于镂空的立方体空间中央，锈蚀的桌面上面放置一本空白记事簿，一方天光从顶部射下……

The cube "floats" 300mm above the ground. The 400mm thick double-layer wood base plate walls are arranged in the shape of windmill, with 600mm wide opening at four corners, so that people can enter from any direction. A 1m high, 600mm wide folding steel table stands in the center of the hollowed out cube space. A blank notebook is placed on the rusty table top, and a sky light shoots down from the top.

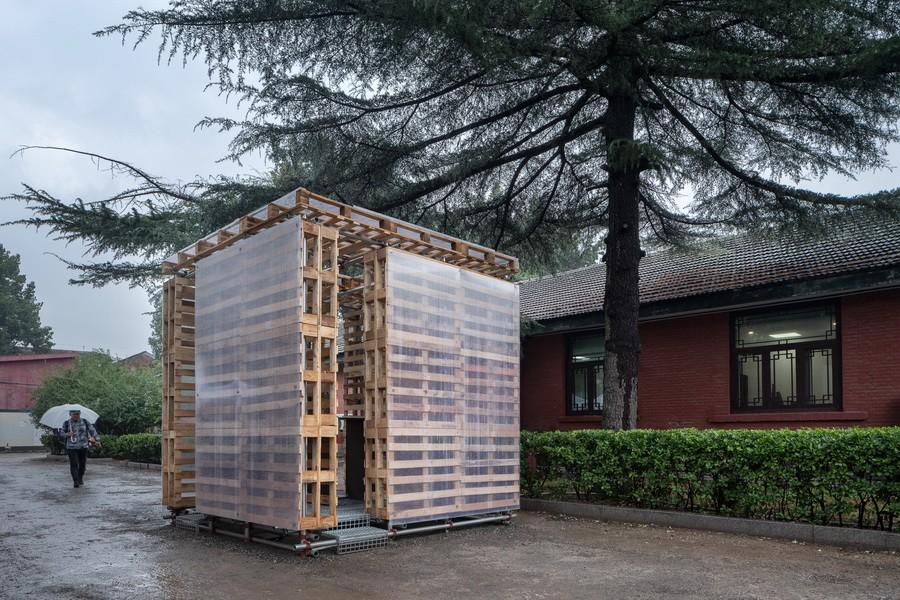

△ 雨中立方体 cube in rain

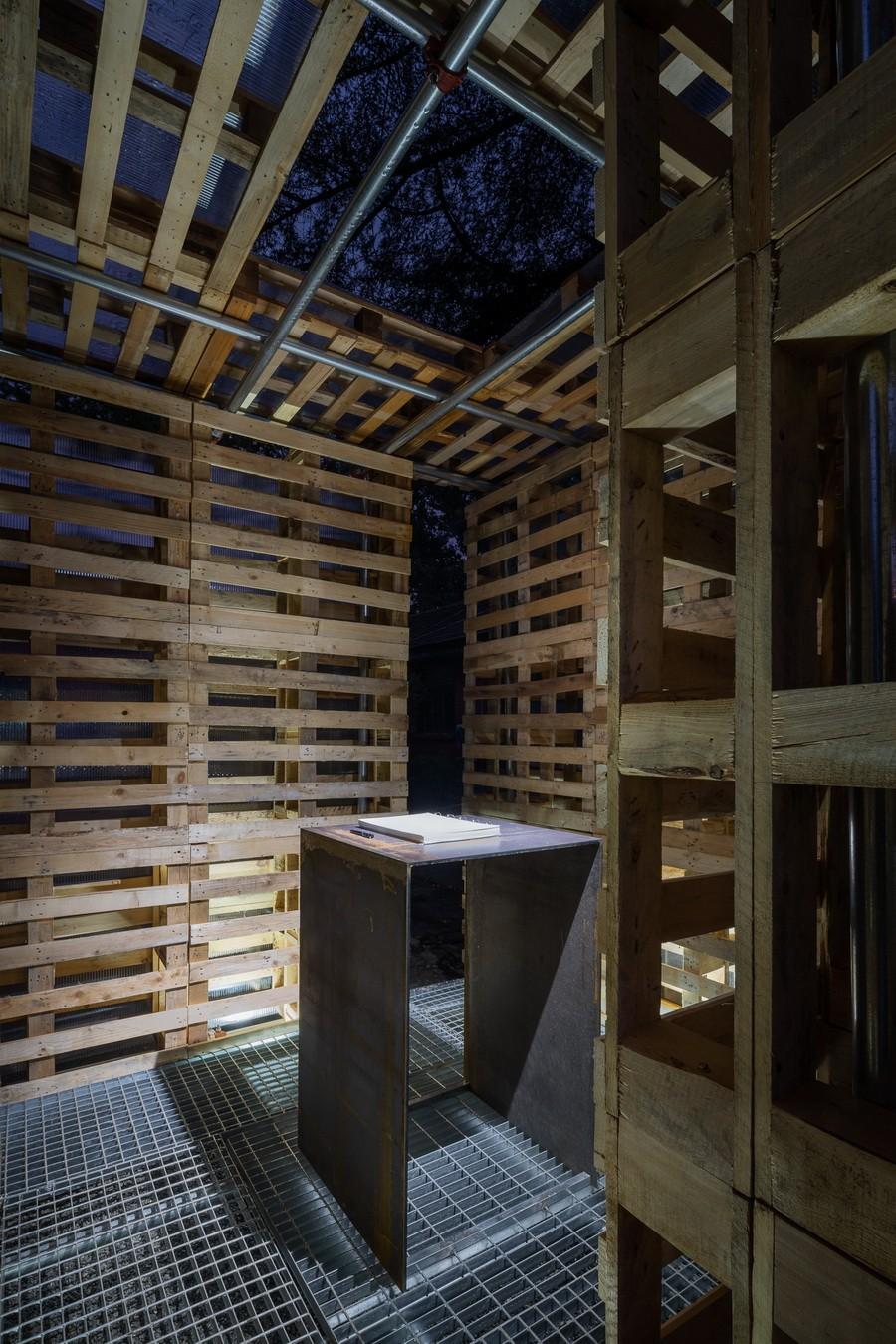

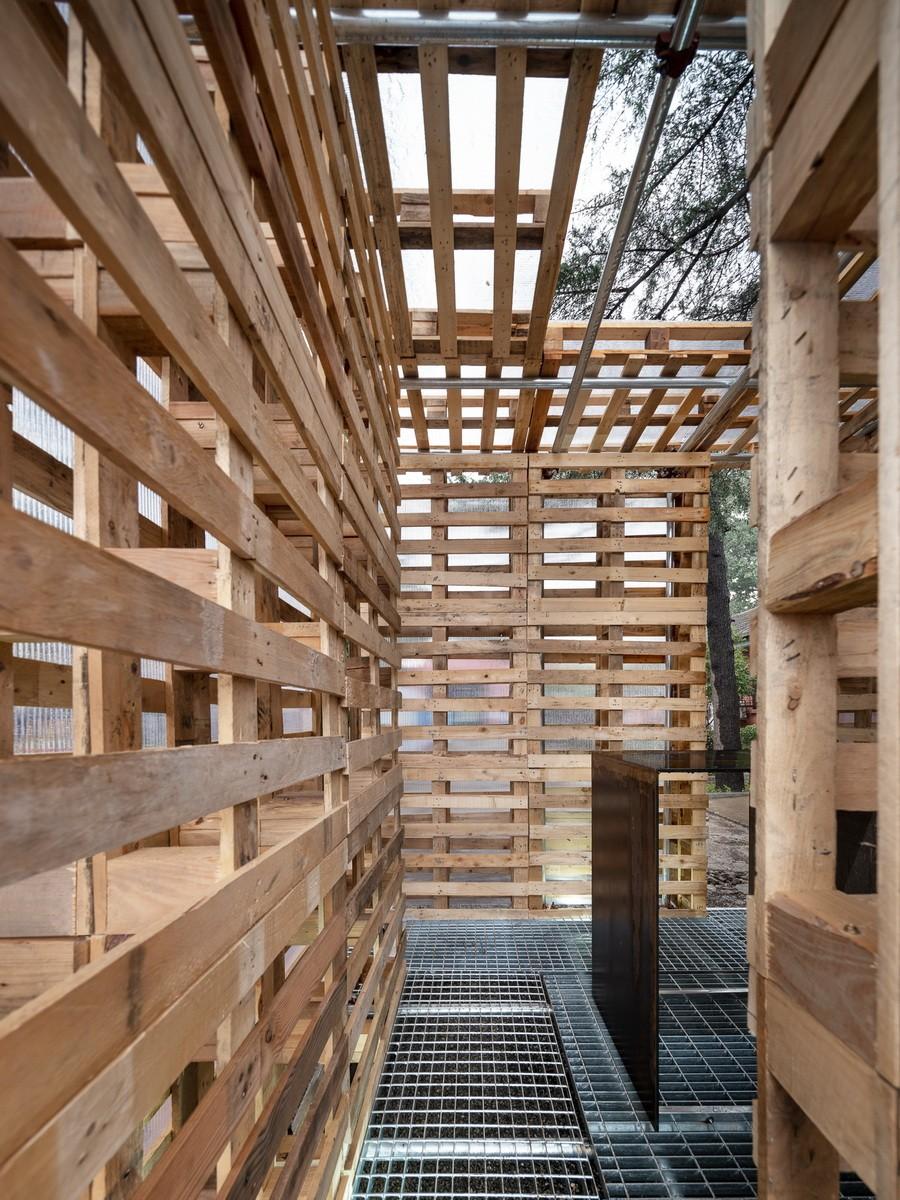

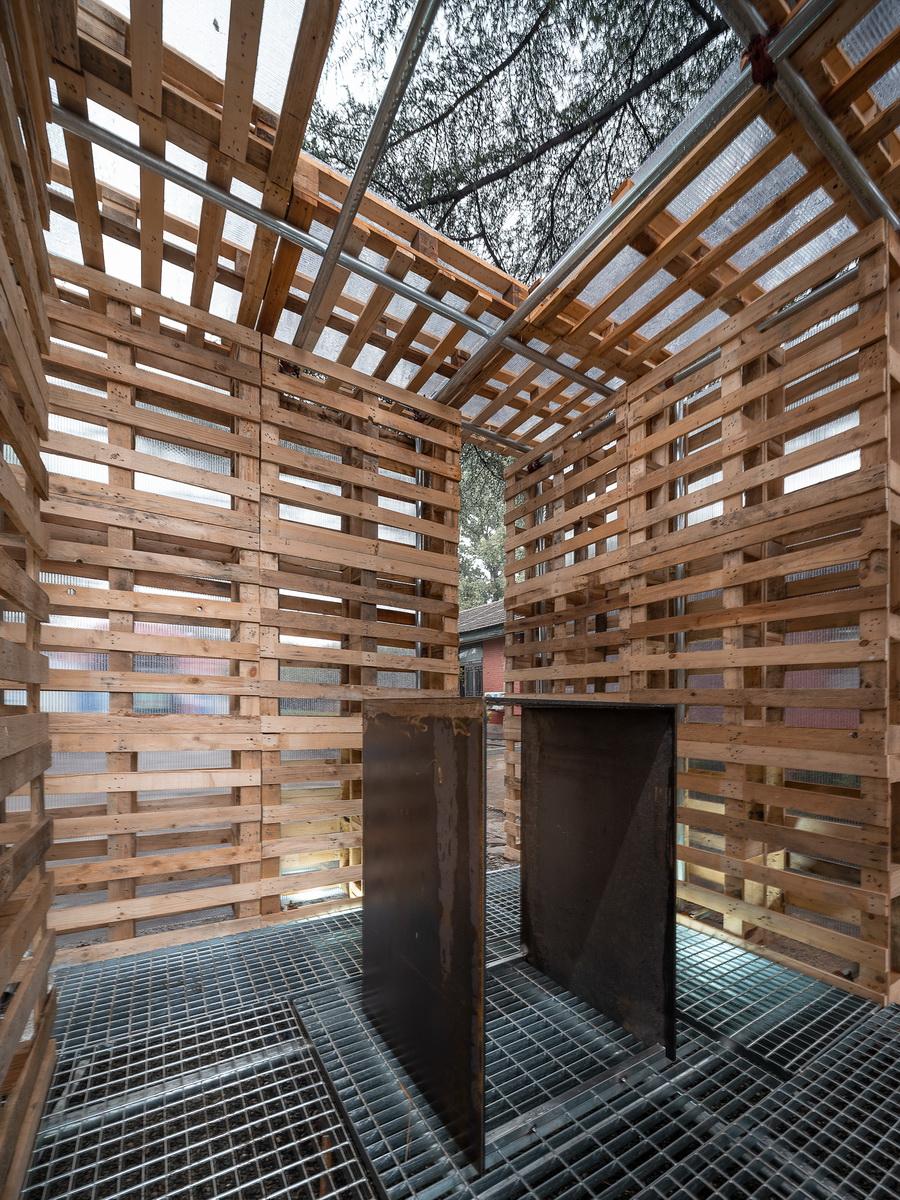

△ 立方体内部空间 cube interior space

你抬脚走进这个悬浮之屋，驻足，凝视……拾起笔，写下你此刻所念。

You walk into this floating house, stop, gaze… Pick up your pen and write down your memories and expectations.

夜晚来临，立方体被点亮，成为一盏灯。

When night comes, the cube is lit and becomes a lamp.

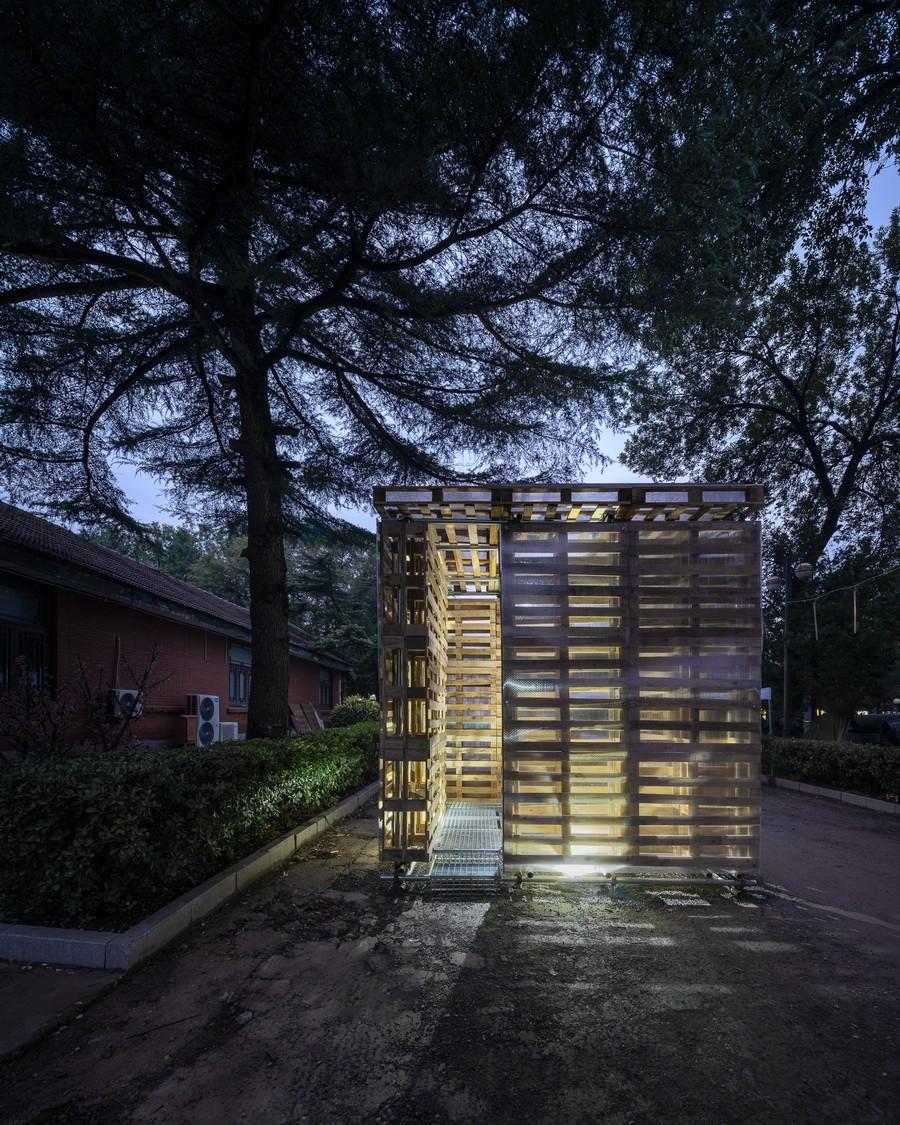

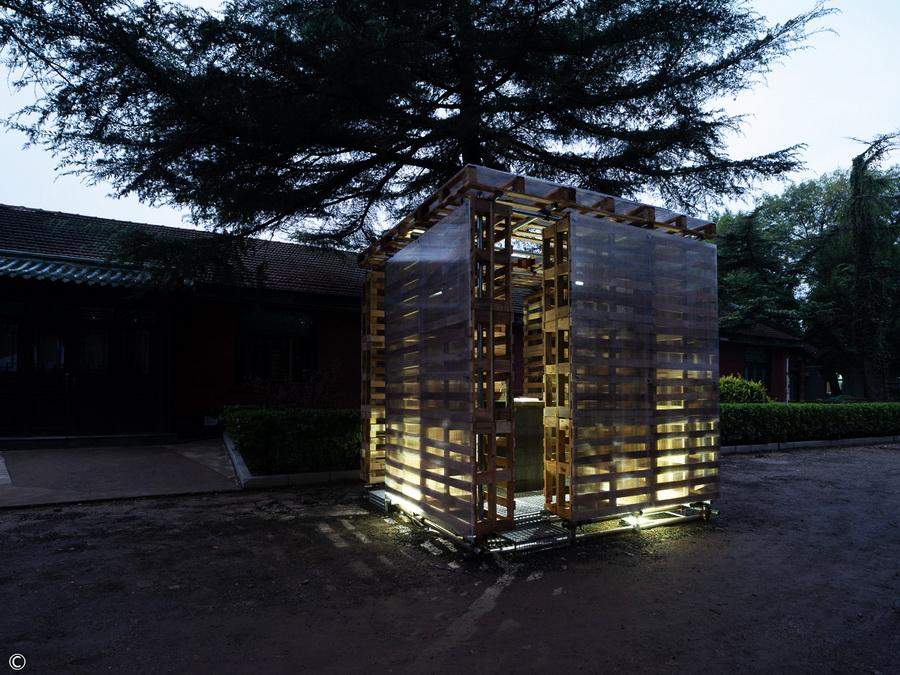

△ 立方体夜景 cube night view

△ 立方体立面夜景 cube night view elevation

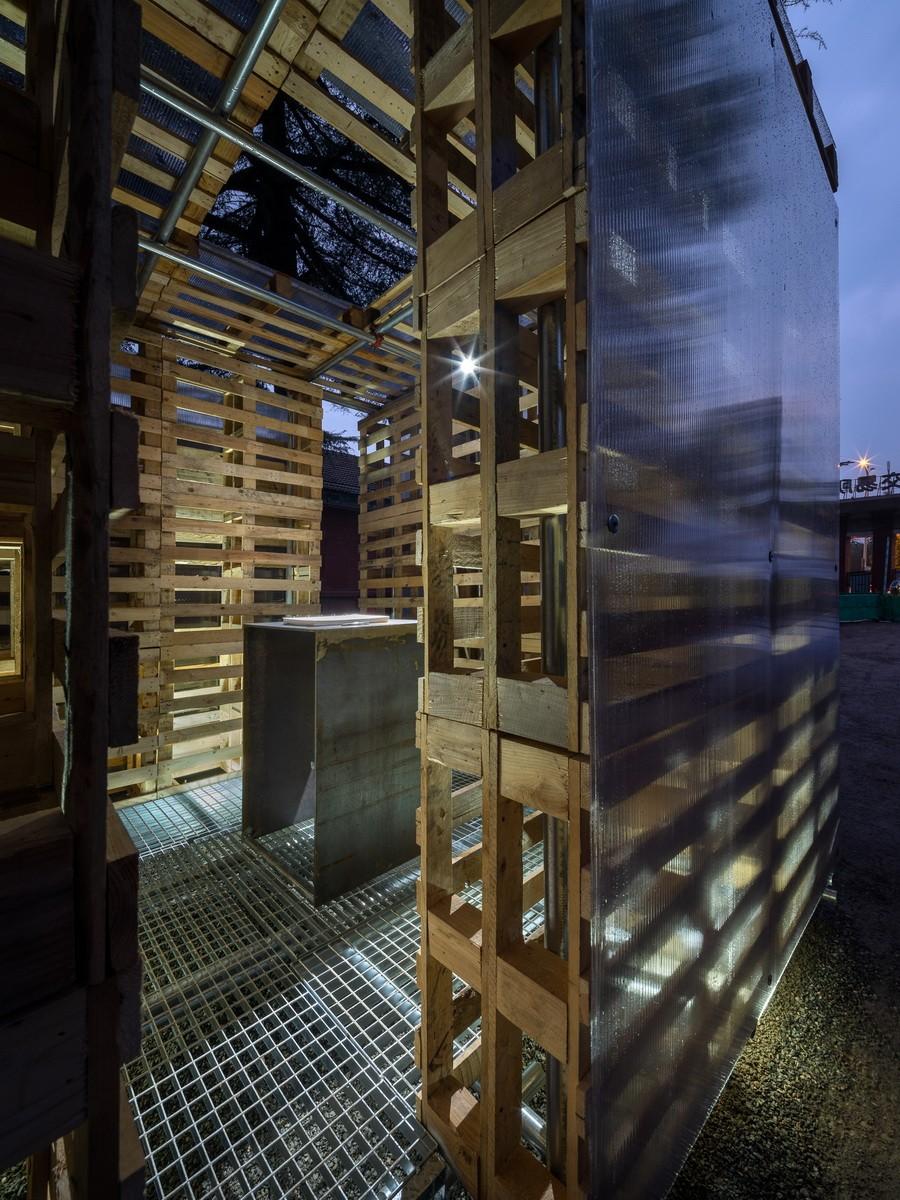

△ 立方体室内夜景 cube interior night view

立方体的搭建过程是一次完整的轻型装配式建造实验：全部材料均采用工厂预制及回收的定型产品，包括起到主体支撑和结构稳定作用的镀锌钢管脚手架（圆钢管直径50mm，壁厚2.25mm），作为墙体的普遍用于物流仓储功能的标准规格（1m×1m）回收木垫板，10mm厚阳光板外表皮敷面和作为镂空地板的单元式钢格栅。立方体的建造和拆除过程需要3-5人的施工团队，建造材料的运输通过一辆长4.2m的箱式货车一次性即可完成，所有材料与构件均可以重复利用。

The construction process of the cube is a complete light-weight assembly construction experiment: all materials are prefabricated in the factory and recycled, including galvanized steel pipe scaffold (diameter of round steel pipe is 50 mm, wall thickness is 2.25 mm), which is the standard specification (1m×1m) recycling wood backing plate commonly used for logistics storage function, and 10mm thick sunlight. The surface of the outer skin of the plate is covered and the unit type steel grid is used as the hollow floor. The construction and demolition process of the cube requires a construction team of 3-5 people. The transportation of construction materials can be completed by a 4.2m long box truck at one time, and all materials and components can be reused.

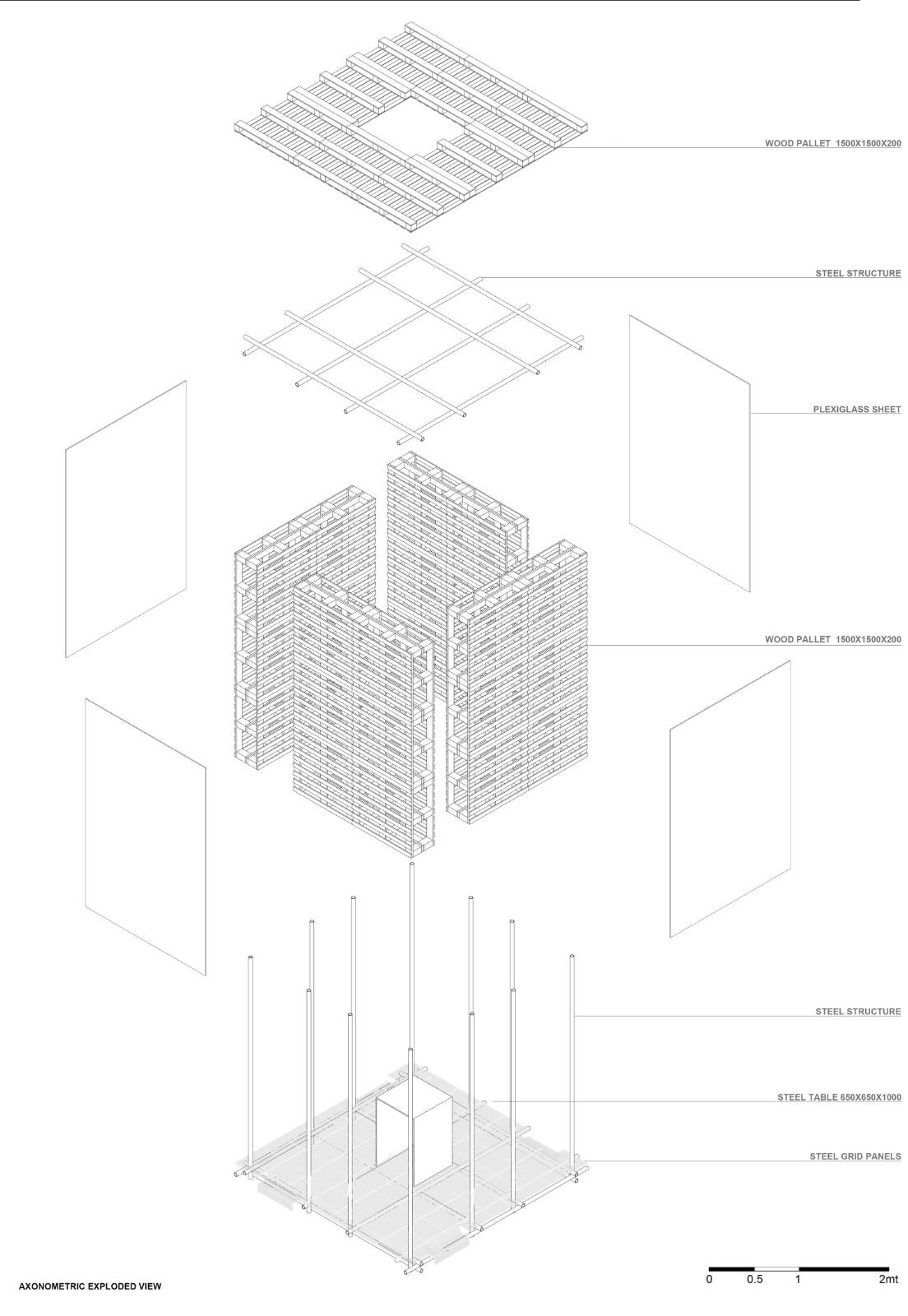

△ 结构分解图 exploded drawing

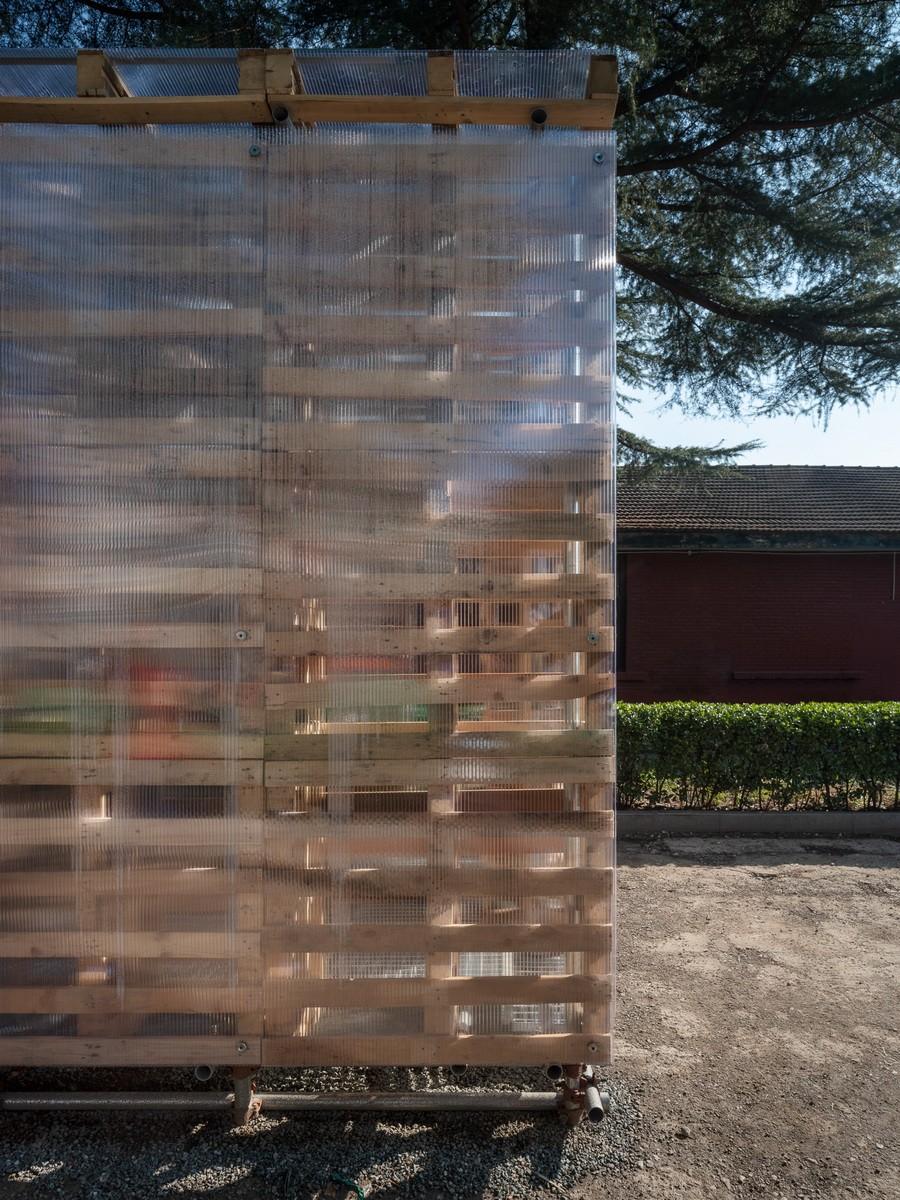

△ 木托板与阳光板 wood base plate and sunlight board

△ 钢与木 steel and wood

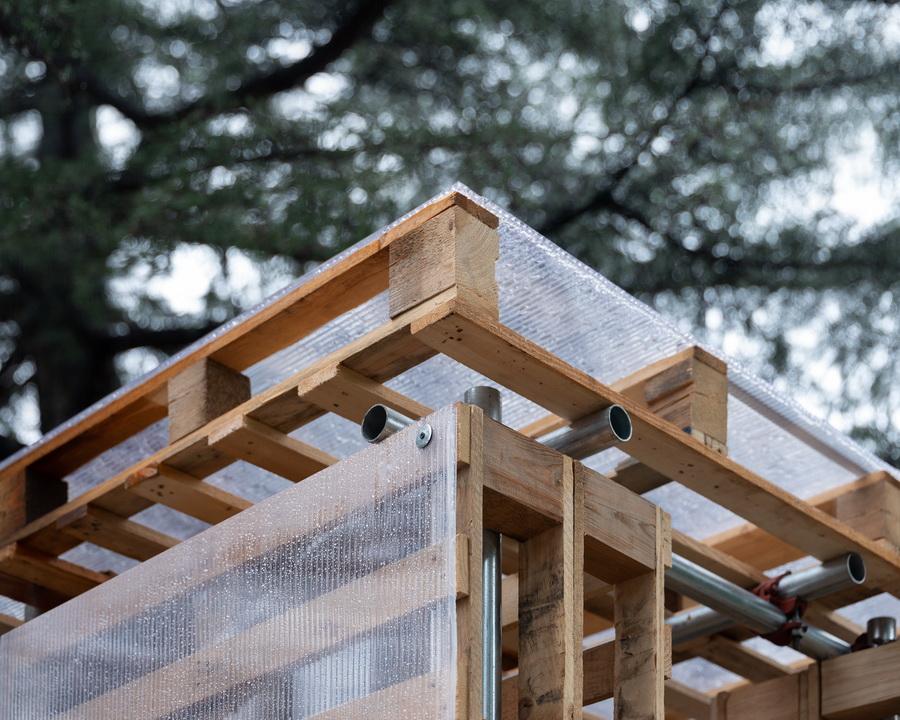

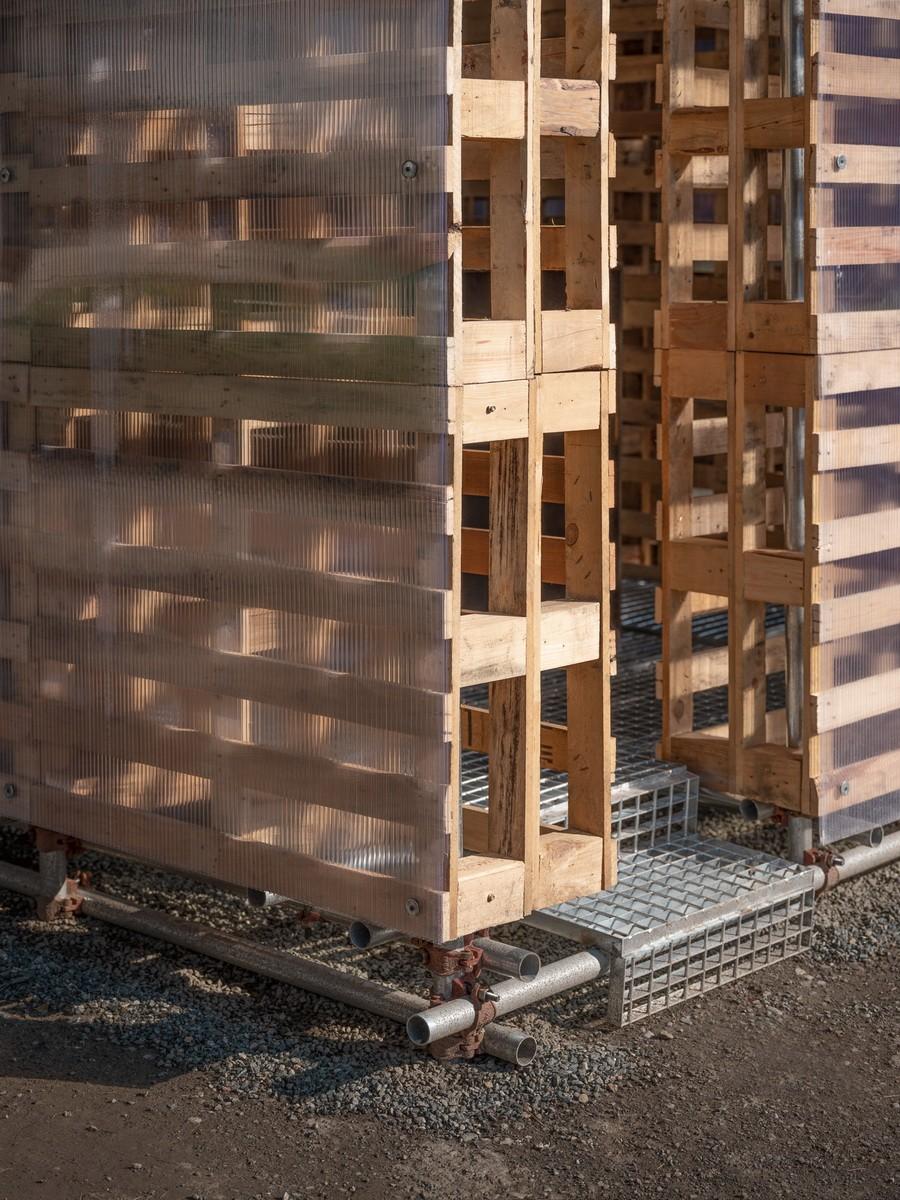

△ 转角细节 corner detail

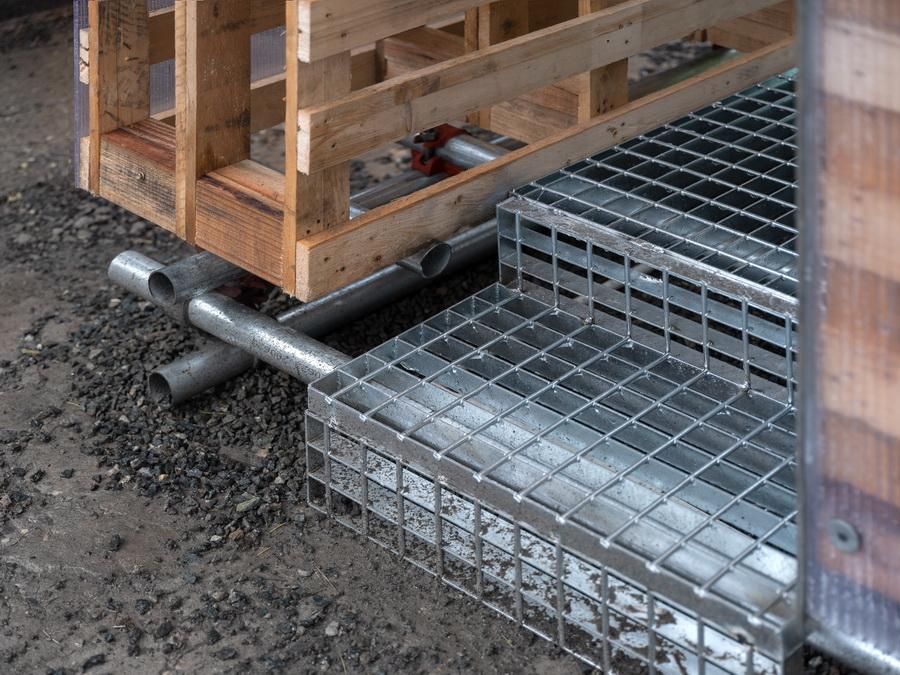

△ 台阶细节 steps detail

简单清晰的建造体系、100%标准化预制构件、重量轻、普遍易得、建造难度低、可快速搭建以及低造价等优点令这个建筑装置显示出强大的适应性，可以建在任何地点，容纳多种功能。建筑的体量和空间尺度亦可以根据使用需要进行灵活调整；中空的墙体与屋顶可以填充保温隔热材料，并作为容纳水电管线的空间；木垫板经过防火和防腐的处理，具有较强的耐久性，且可随时更换；内外表皮可就地取材，采用多种围护材料，以满足防水和防风的要求；门窗可根据实际场地条件、盛行风向和太阳方位进行灵活设置，以实现自然通风和采光的需求。

The advantages of simple and clear construction system, 100% standardization of components, light, low construction difficulty, rapid construction and low cost make this building device show strong adaptability, and can be built in any place to accommodate multiple functions. The volume and space scale of the building can also be flexibly adjusted according to the needs of use; The hollow wall and roof can be filled with thermal insulation materials and used as the space for water and electricity pipelines; The wood base plate has been treated with fire prevention and anti-corrosion, and can be replaced at any time; The internal and external skin can be made of local materials, and a variety of enclosure materials are used to achieve waterproof and windproof requirements. According to the actual site conditions, prevailing wind direction and sun direction, doors and windows can be flexibly set to meet the needs of natural ventilation and lighting.

△ 轴测图 isometric view

这是一个具有无限拓展潜力的建造体系，可为自然灾害发生后的应急处置和灾后快速重建提供具有较强坚固性和耐久性的功能空间，如灾民临时安置住房、临时医院、卫生设施等，也可用于市政服务及小型户外旅游服务设施，以及供人沉思冥想和心灵抚慰的精神场所，从而发挥轻型装配式建筑的特殊社会价值。

This is a construction system with unlimited expansion potential, which provides strong solid and durable functional space for emergency disposal and rapid reconstruction after natural disasters, such as temporary resettlement housing, temporary hospitals, health facilities, etc. it can also be used for municipal services and small outdoor tourism service facilities, and a spiritual place for meditation and spiritual comfort so as to play the special social value of light prefabricated buildings.

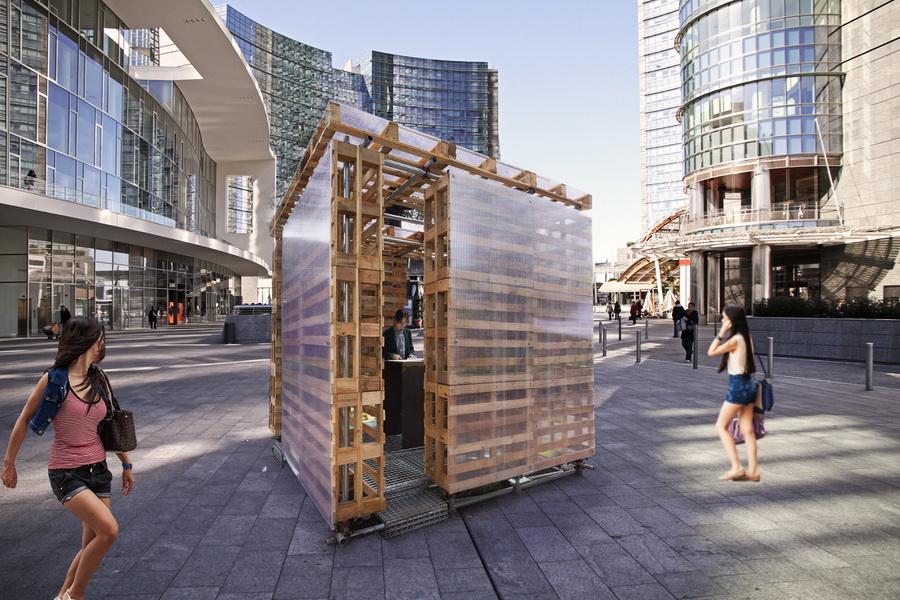

△ 在都市中 in city

△ 在森林中 in forest

△ 在荒野中 in wild

物质的建筑会消失，但总有一些东西会永驻于心。

Physical architecture will disappear, but there will always be something in the heart.

设计图纸

design drawing

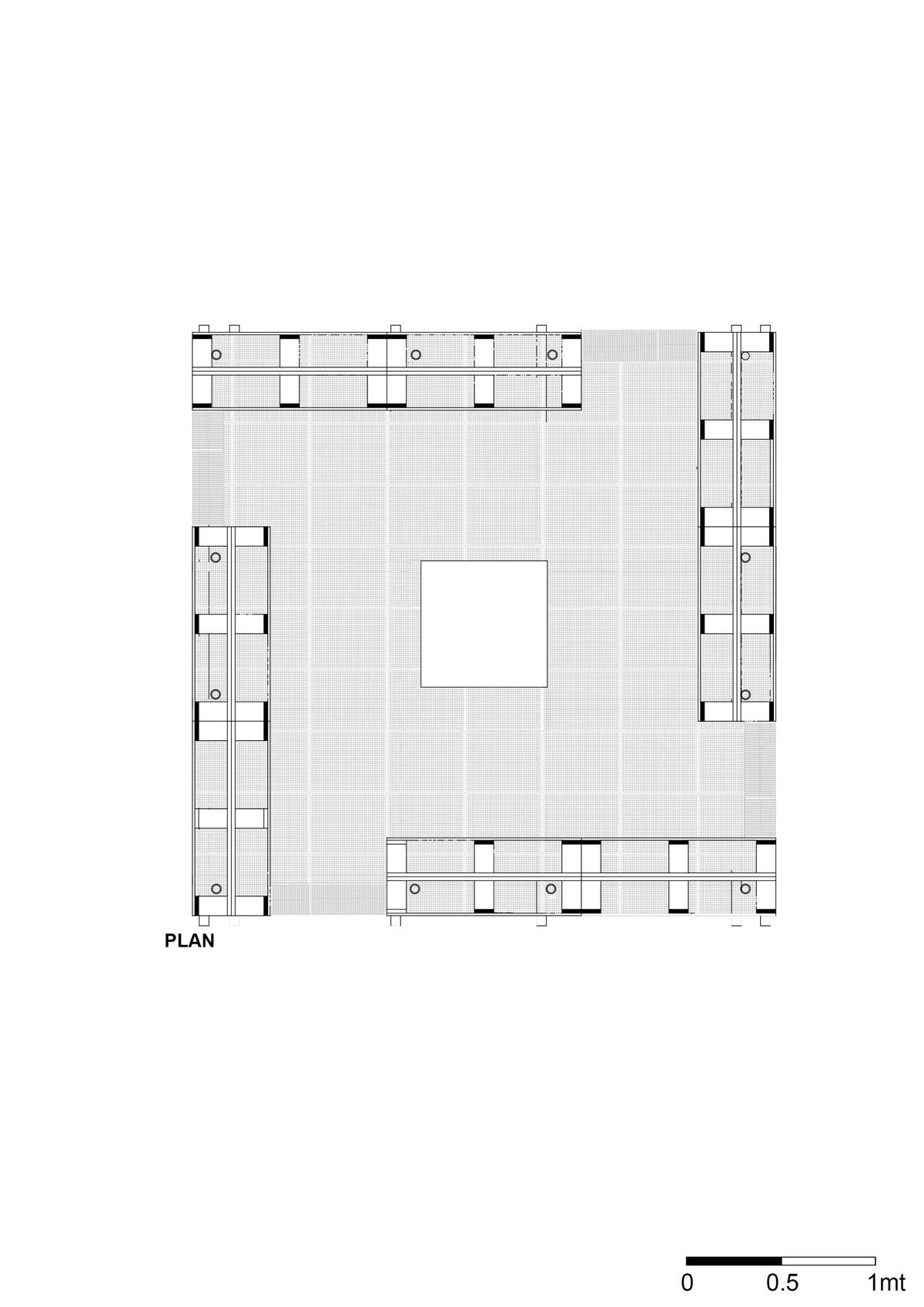

△ 平面图 plan

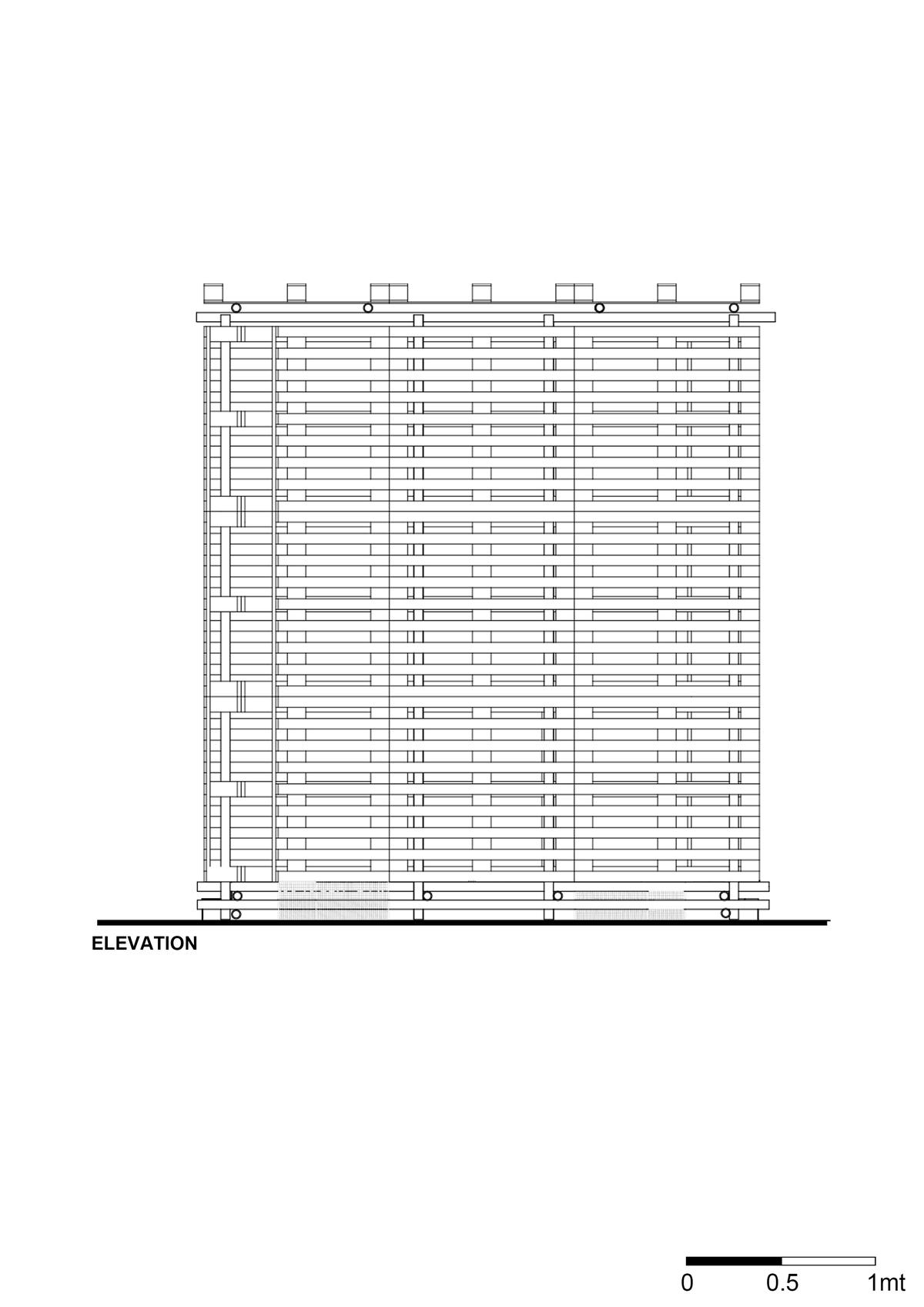

△ 立面图 elevation

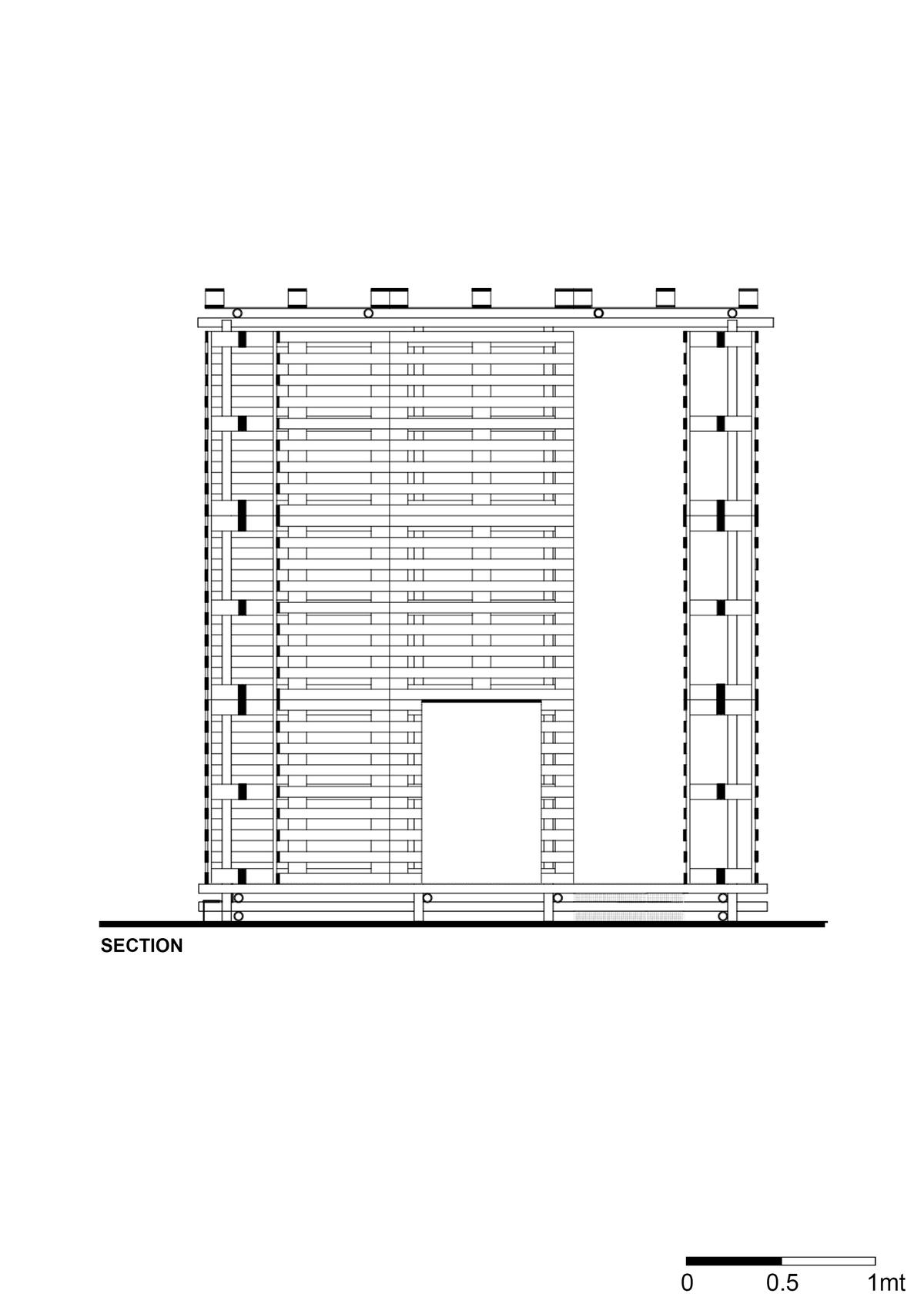

△ 剖面图 section

项目信息

项目名称：记忆之屋—一次轻型装配式建造实验

项目类型：建筑/装置

项目地点：北京市海淀区龙徽1910文化创意产业园

设计机构：中建工程设计/袁野建筑工作室（Yuan Ye Architects）

建筑师：袁野，Matteo Mariano

展览：2020北京国际设计周（Beijing Design Week）

支持：海淀区西山创新设计联合会

材料：镀锌钢管、回收木垫板、聚碳酸酯板、镀锌钢板格栅

重量：1100公斤

造价：1.05万元人民币

建成状态：建成

设计时间：2020.09.20

建设时间：2020.09.22

用地面积：9平方米

建筑面积：9平方米

施工单位：领创未来（北京）建设有限公司

施工经理：唐五四

摄影：吕博

视频：李奔跑
